AD 1000

Precise absolute pressure transmitter for measuring absolute pressure in closed systems

Overview
Technical data
Documents and downloads
Images

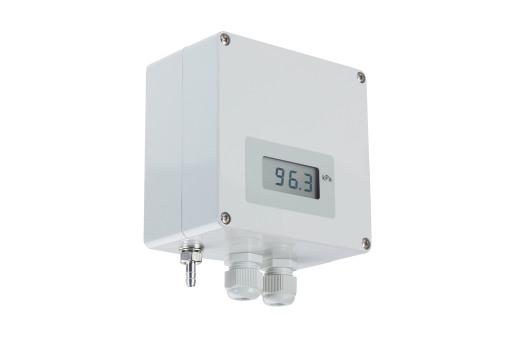

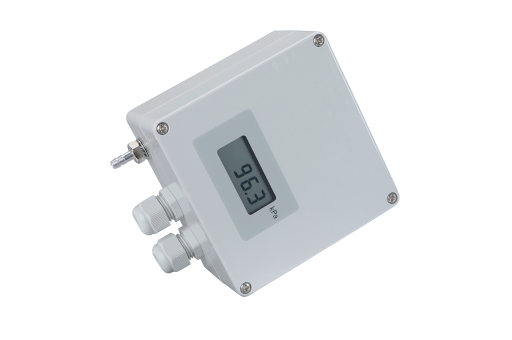

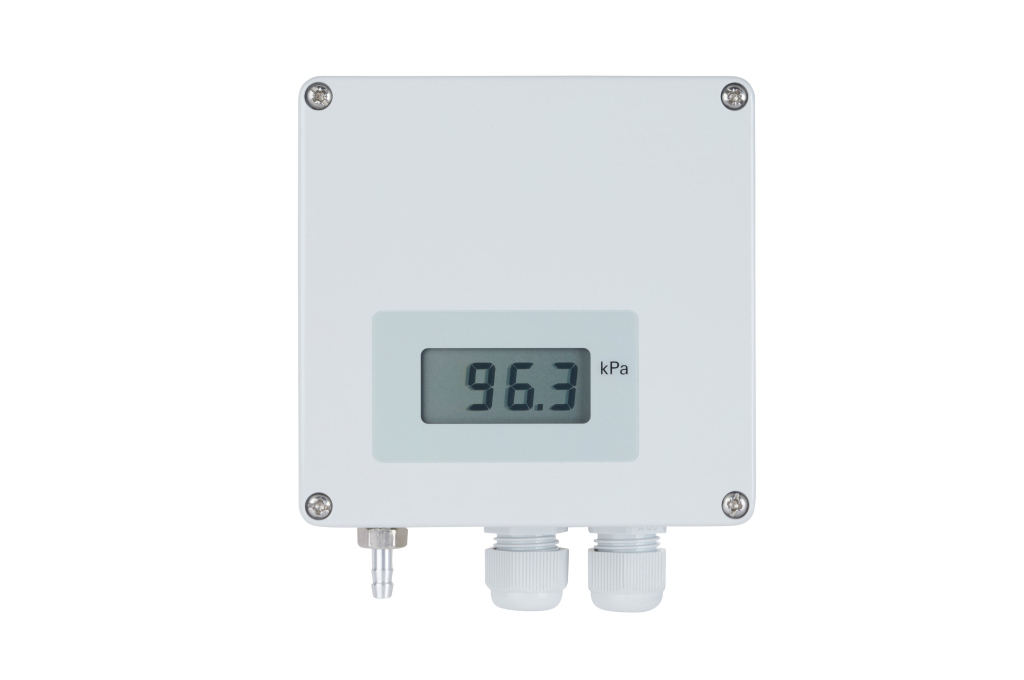

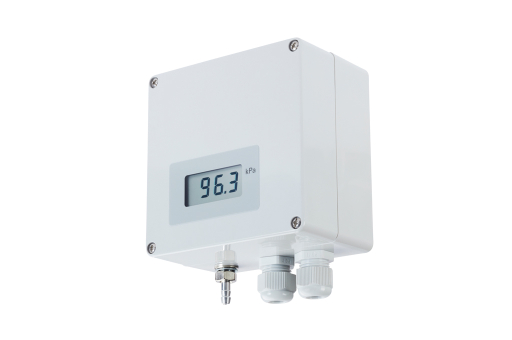

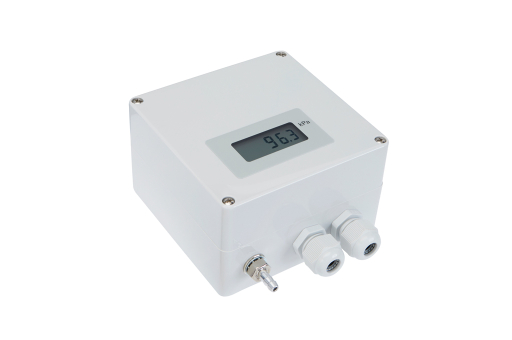

Absolute pressure transmitter for measuring absolute pressures in closed systems

Special features

    • High level of accuracy and long-term stability
    • Little zero point drift or hysteresis; largely independent of temperature
    • Reduction can be performed to adjust to the altitude of the place of installation
    • Available for a variety of measuring ranges, output signals and supply voltages
    • Available with display (optional)
    • Can be calibrated
The AD 1000 absolute pressure transmitter is designed to display atmospheric pressure (BA 1000) and absolute pressure. At the heart of the unit is an evacuated measurement cell made from an elastic copper material. The deflection of the measurement cell due to absolute pressure is measured inductively without making contact. The transmitter emits an electrical output signal proportional to the absolute pressure. The device can be powered using a 24 VDC power supply or a variety of AC voltages. The pressure port is led through in the AD 1000 making it suitable for measuring absolute pressures in closed systems.

Options
  • Available with an ISO factory calibration or DAkkS-accredited calibration certificate (optional).
  • Also available with LCD (optional).
Measurement ranges
0 .. 50 kPa0 .. 100 kPa80 .. 120 kPa90 .. 110 kPa100 .. 0 kPa
Margin of error (0,3 Pa for the reference)
± 1 % of measurement rangeReference ± 0.5 hPa with respect to sea level
Output (signal)
0 .. 10 V (RL ≥ 2 kΩ)0 .. 20 mA (RL ≤ 500 Ω)4 .. 20 mA (RL ≤ 500 kΩ)
Display

3 1/2 digit

Protection class

IP 54

Reduction

0 .. 850 m above sea level (please indicate when placing your order)

Supply voltage
24 VDC, +20 % / -15 %24 VAC, +6 % / -15 %115 VAC, +6 % / -15 %230 VAC, +6 % / -15 %
Technical drawing
