KAL 100

High precision measurement and pressure calibration device in one with automated pressure generator

Overview
Technical data
Downloads
Images

Pressure calibration device with integrated pressure generator for stationary and mobile applications

Special features

    • High level of accuracy and long-term stability through automatic zero-point calibration
    • Available for 4 measurement ranges
    • Simple menu navigation for unit conversion, setting calibration points and setting the measurement range
    • Menu navigation in German, English, Italian, French and Spanish
    • Generation of positive and negative differential pressures
    • Can be calibrated
    • Easy to operate and produce calibration curves via optional USB port and PC

The KAL 100 calibration device combines a pressure transmitter and pressure gauge. These can be used to test and calibrate pressure sensors and other pressure gauges for low pressures both quickly and easily. The desired pressure is indicated on the digital display and pressure is generated quickly and precisely through the use of a closed loop, thereby eliminating the need for an external pressure generator.

Options

  • The KAL 100 can also be fitted with a USB port (optional). This allows testing protocols to be transferred simply to the PC.
  • Available with a power supply and a measuring input for external test objects. No additional power adapters or measuring instruments required for the test object.
  • Available with lithium-ion rechargeable battery.
  • Available with a calibration certificate according to DKD-R 6-1.

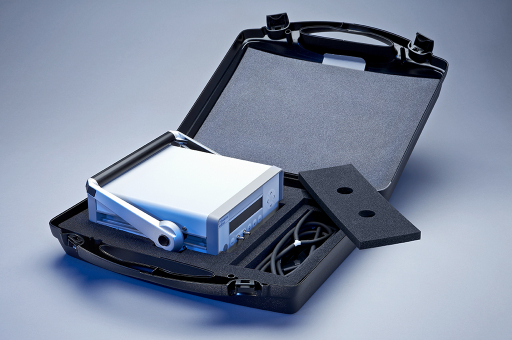

  • Also available with carrying bag (standard) or transport case.
Measurement ranges
0 .. 100 / 0 .. 200 / 0 .. 500 Pa0 .. 1 / 0 .. 2 / 0 .. 5 / 0 .. 10 / 0 .. 20 / 0 .. 50 / 0 .. 100 kPa± 100 / ± 200 / ± 500 Pa± 1 / ± 2 / ± 5 / ± 10 / ± 20 / ± 50 / -80 .. 100 kPa
Measurement accuracy
± 0.2 % FS for measurement ranges > 0 .. 200 Pa / ± 200 Pa± 0.5 % FS for measurement ranges ≤ 0 .. 200 Pa / ± 200 Pa
(Data) Interface

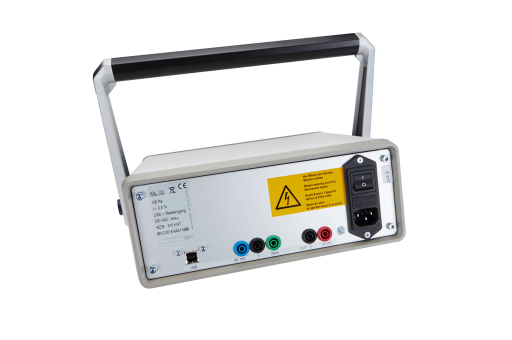

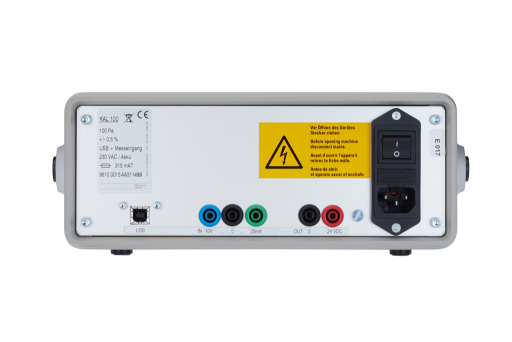

USB + measurement input for test object
Display

Alphanumeric display with 2 x 20 characters, backlighting

Input / power supply

0 .. 10 V, 0 .. 20 mA, Accuracy: 0.2 % of max. value

Available unit settings

Pa, kPa, mmHg , mmH2O , inH2O

Power supply
85 .. 264 VAC85 .. 264 VAC and rechargeable lithium ion battery
Data sheets with technical drawing
