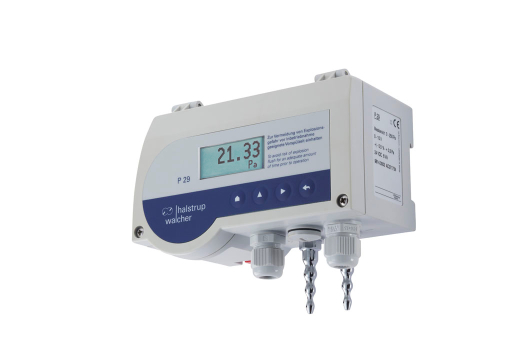

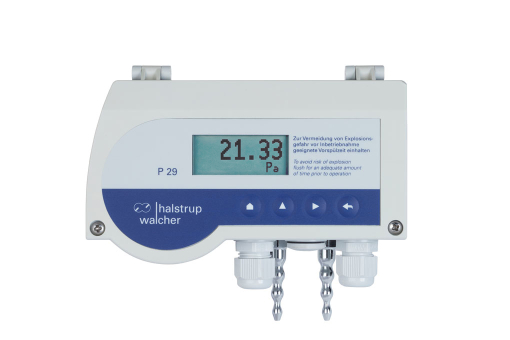

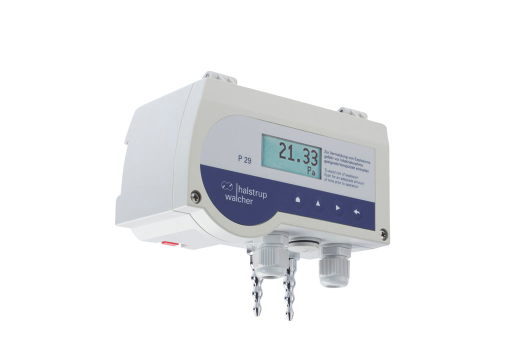

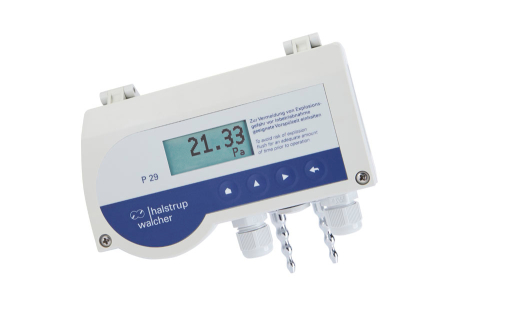

P 29

TÜV-certified differential pressure transmitter for measurement for natural gas applications without Ex-zone requirements.

Overview
Technical data
Documents and downloads
Images

TÜV-certified differential pressure transmitter for measurement for natural gas applications without Ex-zone requirements.

Special features

  • High level of accuracy and long-term stability through automatic zero-point calibration
  • Multi-coloured Display with keypad for easy configuration of the measuring range, analog output, time constants and units (optional, also via USB/PC)
  • Measurement of differential pressure or volumetric flow / flow rate possible
  • Multilingual menu (English/German/Italian/French)
  • Suitable for top-hat rail mounting and wall surface installation
  • Silicon-free materials for parts in contact with medium
  • Selectable output signal 0 .. 10 V, 0/4 .. 20 mA or ± 5 V
  • Selectable attenuation of the output signal from 0 .. 60 s
  • Can be calibrated
  • High level of overpressure protection even in the smallest measuring ranges protects the instrument against pressure peaks or incorrect operation
  • Quick and easy start-up due to automatic zero-point calibration
  • Pressure Ports: Laboratory nozzle optional with cutting ring connectors

The pressure transmitter is particularly suitable for measuring volume flow of town gas supplies or other gaseous hydrocarbons such as butane, methane etc. in industrial furnaces or combustion plants. The instrument does not generate any ATEX zone as its design and technical safeguards mean it poses no ignition hazard. The measuring range is scalable in the range from 10 .. 100 %. This can be performed using a keypad and display (optional). The measured values can be displayed in all standard units. A selectable time constant allows the transmitter to be adjusted perfectly to the pressure conditions and thus ensures a stable output signal. The P 29 can be mounted either on a wall or on top-hat rails.

Options

  • Available with an ISO factory calibration or DAkkS-accredited calibration certificate (optional).
Measurement ranges
250 / 500 Pa1 / 2.5 / 5 / 10 / 20 / 50 / 100 kPaFreely scalable from 10..100% within a measurement rangeOthers available upon request
Margin of error (0,3 Pa for the reference)
± 0.2 % of max. value for measurement ranges ≤ 50 kPa± 0.5 % of max. value
Output (signal)
0 .. 10 V (RL ≥ 2 kΩ)0 .. 20 mA (RL ≤ 500 Ω)4 .. 20 mA (RL ≤ 500 kΩ)± 5 V (RL ≥ 2 kΩ)Output signals can be configured freely
Display

Multi-coloured LCD and keyboard (optional)

Protection class

IP 65

Tubing connectors

2 x laboratory spout DIN 12898

Supply voltage
24 VDC, ± 10 %
Technical drawing
