PSD 41

Integrated direct drive PSD with Nema 17 in vertical construction

Overview
Technical data
Documents and downloads
Images

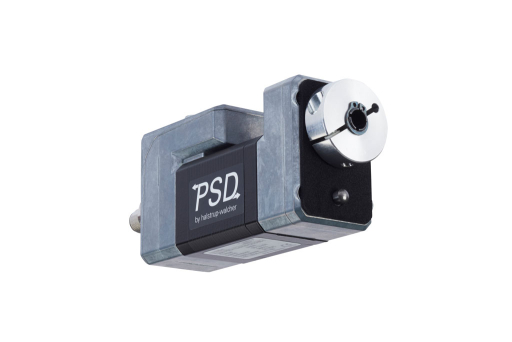

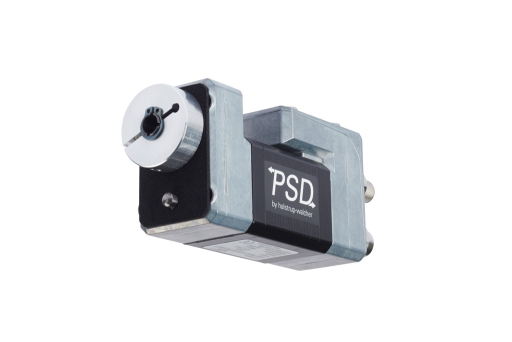

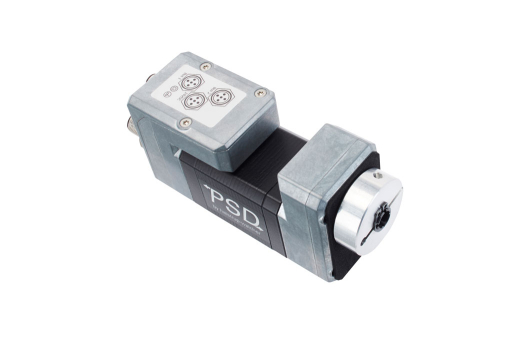

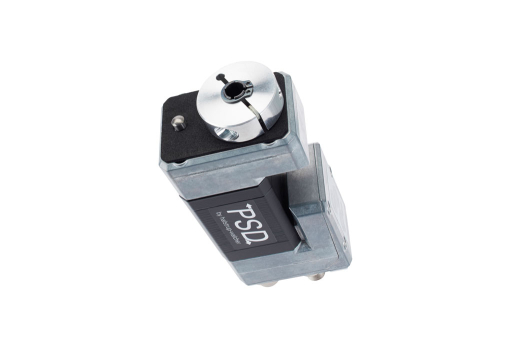

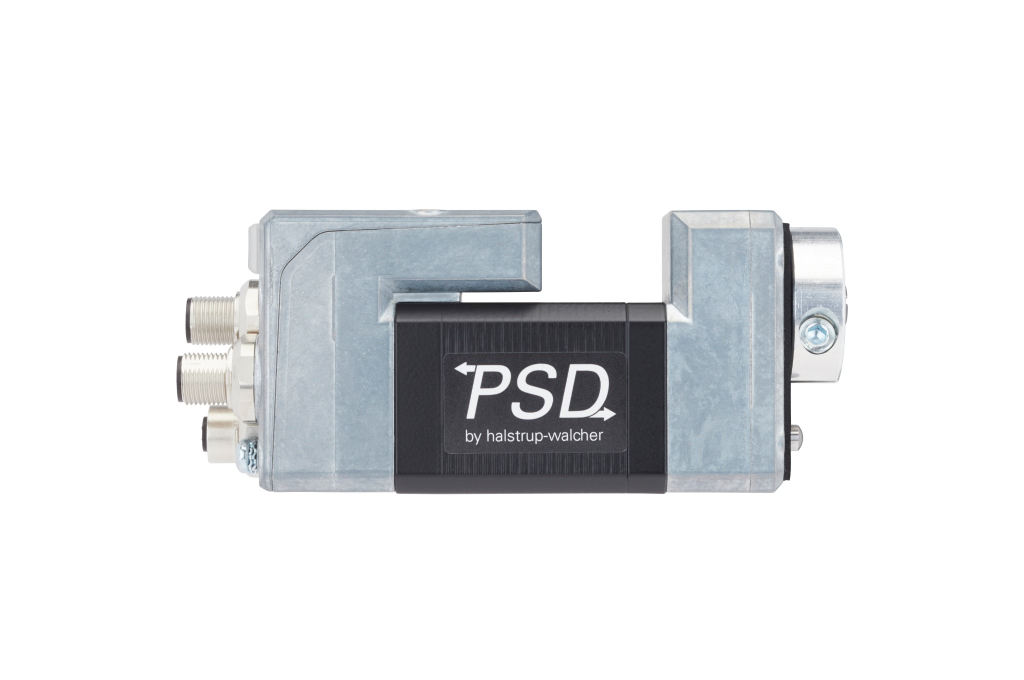

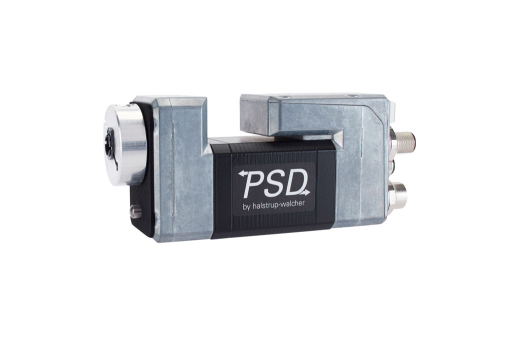

Integrated direct drive with Nema 17, vertical construction

Special features

  • Space-saving, compact design
  • Maximum flexibility due to alignment as horizontal or vertical design (PSD 40) and the optional rotatable actuator housing
  • Galvanically separated supply voltages for control and power electronics
  • Precise position feedback thanks to an absolute measurement system without battery
  • Easy and low-cost mounting via optional hollow shaft
  • Optional gearbox for more torque
  • Address may be set using the bus or an address switch (not for IO-Link)
  • Status LEDs visible from the outside

PSD 41 direct drive is a mechatronic system with integrated control, bus interface and absolute measurement system without battery. This drive is ideal for automatic format changeover. The stepper motor with integrated control and bus communication permits higher velocities at lower torques.

The absolute measuring system at 986 ..4026 rotations eliminates the need for time-consuming reference runs and increases the efficiency of the machine. Direct measurement of the position ensures highly accurate positioning. The galvanically separated supply voltages for the control and performance electronics permit the implementation of an emergency shut-off function without interrupting communication with the control module.

The PSD can be easily addressed by rotary switches (not for IO-Link). The instruments can be mounted on a spindle using the hollow shaft without the need for an additional coupling. The direct drive is also available in horizontal design (PSD 40). The optional rotatable attachment housing allows you to attach the direct drives to the machine in any position, no angle plugs are required.

Options

  • Optional with 8 or 14 mm hollow shaft with torque support.
  • Available in company colour on request.
  • Optional with IP 65 (installed, motor shaft IP 50).
  • Optional gearbox for up to 8 Nm.
Position

Longitudinal construction

Nominal torque / nominal rated speed
PSD 411: 0.8 Nm / 200 rpmPSD 413: 3 Nm / 50 rpm
Max. speed
PSD 411: 800 rpm at 0.3 NmPSD 413: 200 rpmat1.2 Nm
Interface / bus communication
CANopenEtherCATPROFINETIO-Link
Positioning accuracy
± 0.7° (for versions with gearbox)± 1.8° (for versions without gearbox)
Supply voltage

24 VDC

Output shaft
8 mm hollow shaft with torque support14 mm hollow shaft with torque support5 mm solid shaft with flattening
Positioning range
PSD 411: 4026 rotationsPSD 413: 986 rotations
Protection class

IP 50, IP 65

Technical drawing
Catalogue excerpts / data sheets
