PSE 200

Positioning system PSE 200 with analogue setting of target value and high positioning range

Overview
Technical data
Documents and downloads
Images

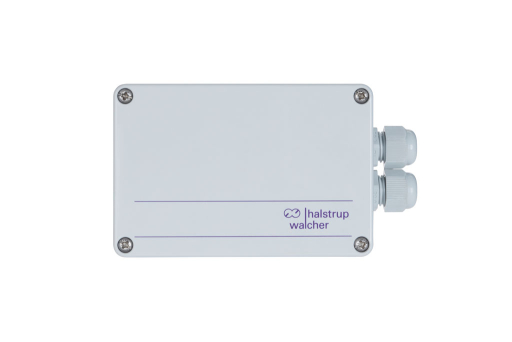

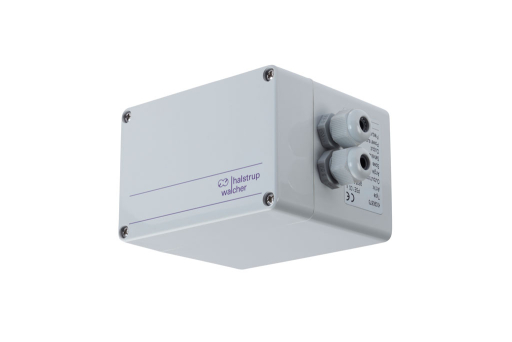

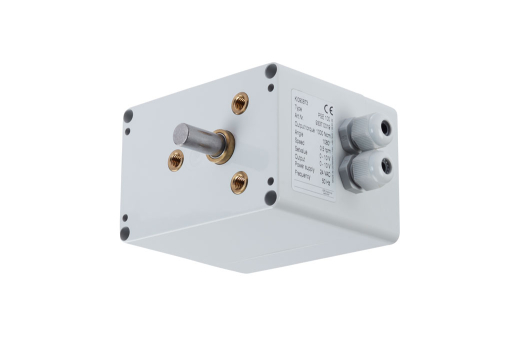

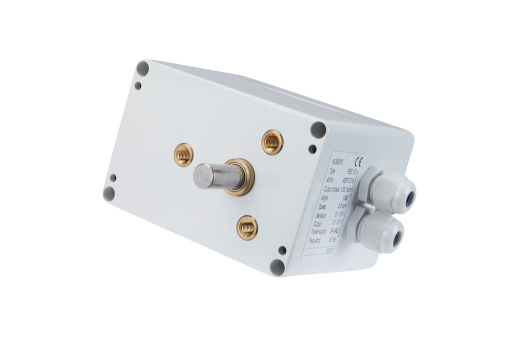

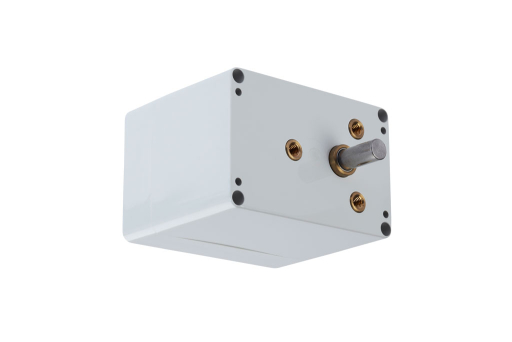

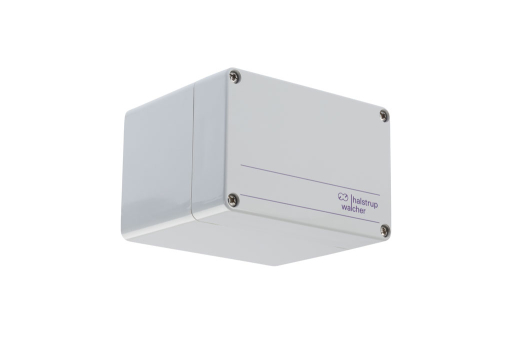

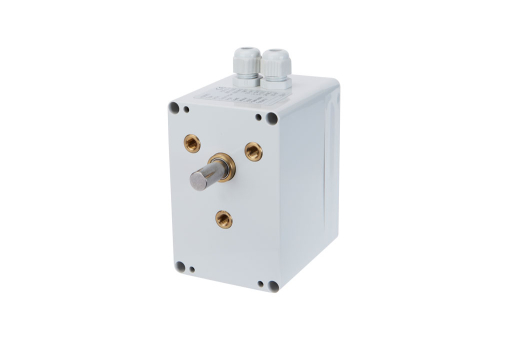

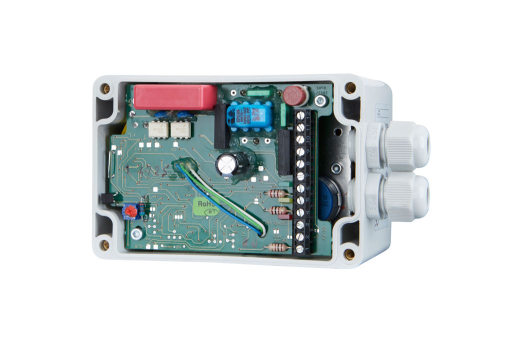

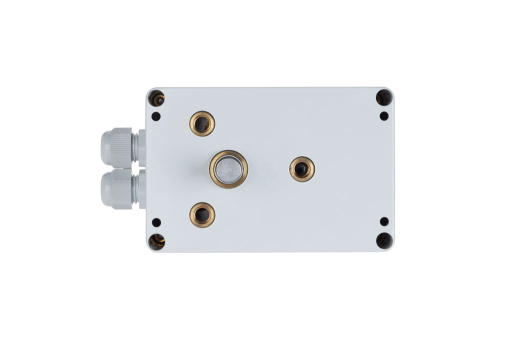

Positioning system with analogue setting of target value and high positioning range

Special features

  • Release-input (optional) and position report ensure high level of functional security
  • Actual value report 0 .. 10 V
  • Variable positioning range up to 50 rotations

The PSE 200 positioning system is a complete system consisting of an actuator and a closed loop with a torque of up to 10 Nm. The target value is predefined via an analogue signal. The position is measured via an absolute measuring system and up to 50 rotations are possible. The position report is via an analogue signal 0 .. 10V.

Options

  • Release-input ensures high level of functional security
  • Enabling of positioning via floating contact
Position

Horizontal construction

Nominal torque / nominal rated speed
PSE 200/1: 1 Nm / 30 rpmPSE 200/2: 5 Nm / 5 rpmPSE 200/3: 10 Nm / 2 rpmPSE 200/4: 10 Nm / 1 rpmPSE 200/5: 10 Nm / 0.5 rpmPSE 200/6: 10 Nm / 0.25 rpm
Interface / bus communication
Default analogue target value (0 .. 10 V / 4 .. 20 mA)
Positioning accuracy
2 % of positioning range
Supply voltage
24 VDC
Output shaft
12 mm solid shaft with flattening
Positioning range
max. 50 rotations
Protection class

IP 55

Position feedback

0 .. 10 V (floating contact "position reached")

Technical drawing
Catalogue excerpts / data sheets
Catalogue excerpts / data sheets
