PSE 272

Positioning system with analogue setting of target value in a solid aluminium housing with IP 65

Overview
Technical data
Documents and downloads
Images

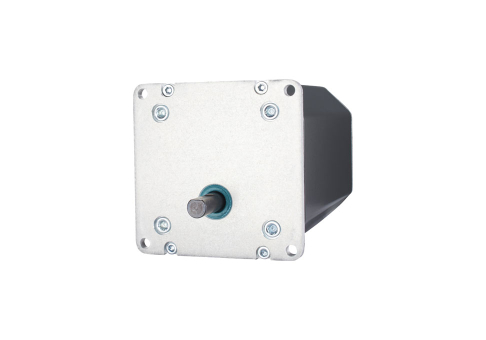

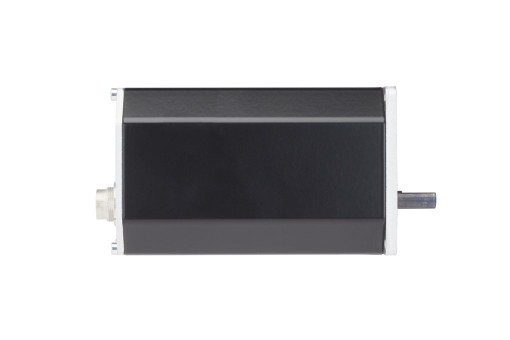

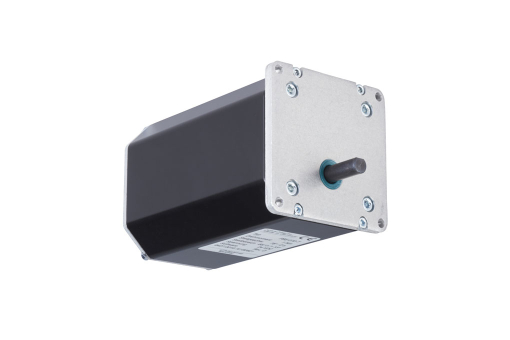

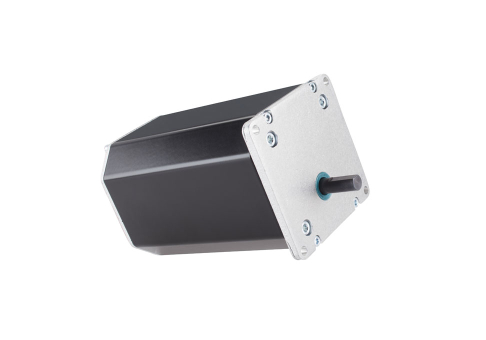

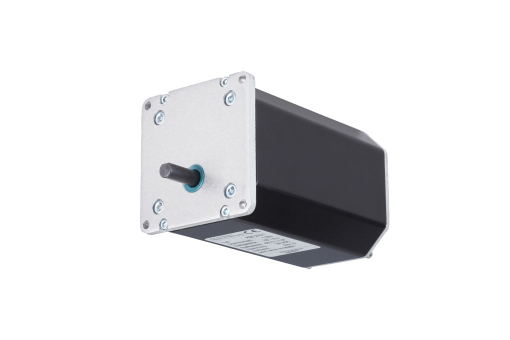

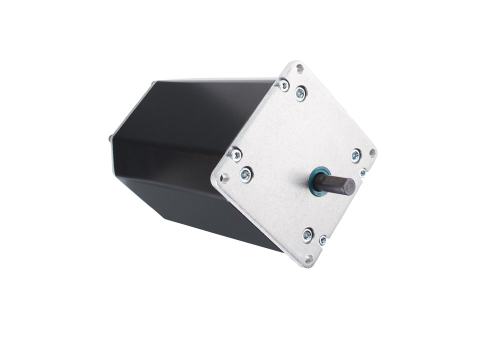

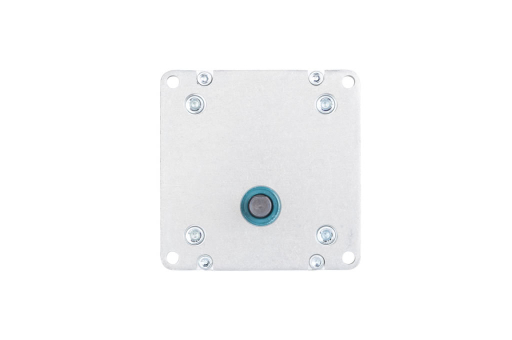

Positioning system with analogue setting of target value in a solid aluminium housing with IP 65

Special features

  • Solid aluminium housing with IP 65
  • Permits use in challenging environments
  • Release-input ensures high level of functional security
  • Positioning range with up to 15 rotations

The PSE 272 positioning system is a complete system consisting of an actuator and a closed loop with a torque of up to 5 Nm. The target value is predefined via an analogue signal. The position is measured via an absolute measuring system and up to 15 rotations are possible. A release-input ensures additional security during positioning.

Position

Longitudinal construction

Nominal torque / nominal rated speed
PSE 272/1: 1 Nm / 60 rpmPSE 272/2: 2 Nm / 30 rpmPSE 272/3: 4 Nm / 15 rpmPSE 272/4: 5 Nm / 7.5 rpm
Interface / bus communication
Default analogue target value (0 .. 10 V / 4 .. 20 mA)
Positioning accuracy
2 % of positioning range
Supply voltage
24 VDC
Output shaft
8 mm solid shaft
Positioning range
max. 15 rotations
Protection class

IP 65

Technical drawing
Catalogue excerpts / data sheets
Catalogue excerpts / data sheets
