HDA 70

Positioning system HIPERDRIVE with 42 W nominal power output

Overview
Technical data
Documents and downloads
Images

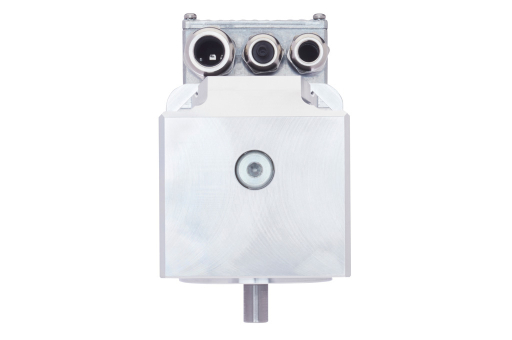

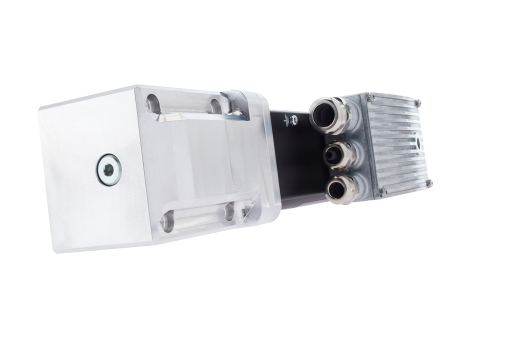

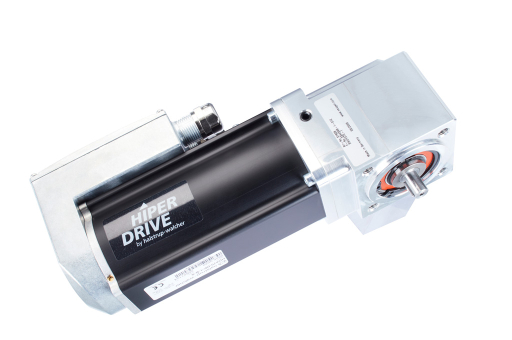

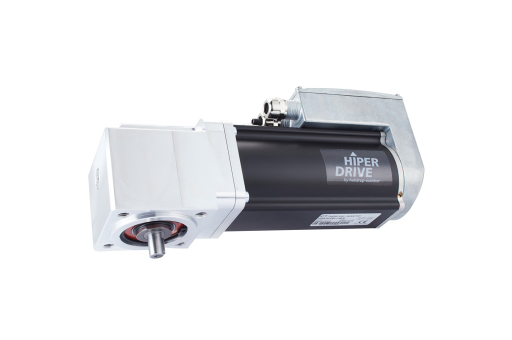

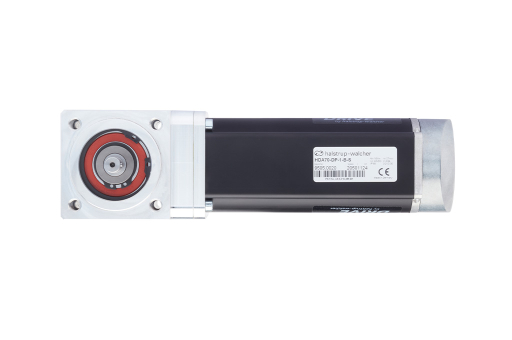

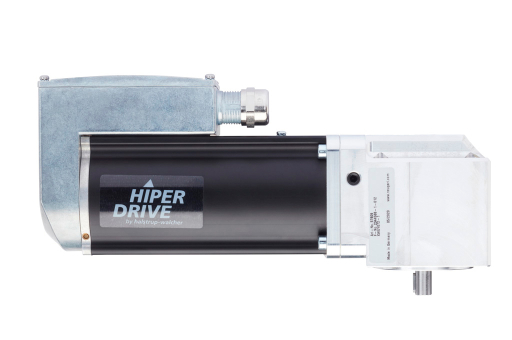

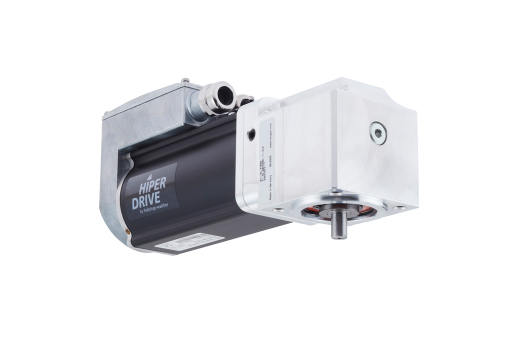

Positioning system HIPERDRIVE HDA 70 with 42 W nominal power output

Special features

  • Bus interfaces simplify start-up and wiring complexity
  • Durable EC-motor
  • Status messages retrievable via bus
  • With bevel gear (optional)

The HIPERDRIVE HDA 70 allows adjustment procedures for positioning and auxiliary axes to be performed efficiently, at low cost and with a high degree of precision. The HIPERDRIVE is available with a PROFIBUS DP or Industrial Ethernet interface for direct connection to a control module and with RS 485 for connection to a Hub.

Position

Longitudinal construction

Nominal torque / nominal rated speed
15 Nm / 27 rpm
Interface / bus communication
PROFIBUS DPEtherCATPROFINETEtherNet/IP
Positioning accuracy
± 1°
Supply voltage
24 VDC, ± 15 %
Output shaft
10 mm hollow shaft (only radial, with bevel gear)12 mm hollow shaft (only radial, with bevel gear)10 mm solid shaft with feather key (axial)10 mm solid shaft with feather key (radial, with bevel gear)
Positioning range
32,000 rotations, not subject to mechanical limits
Protection class

IP 65
