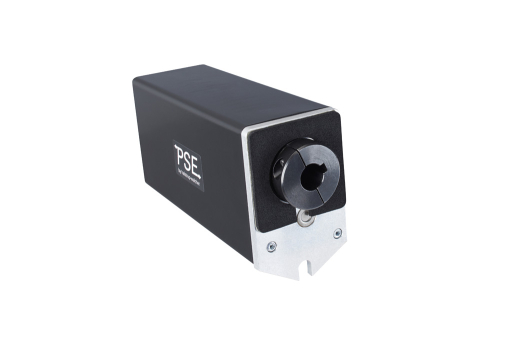

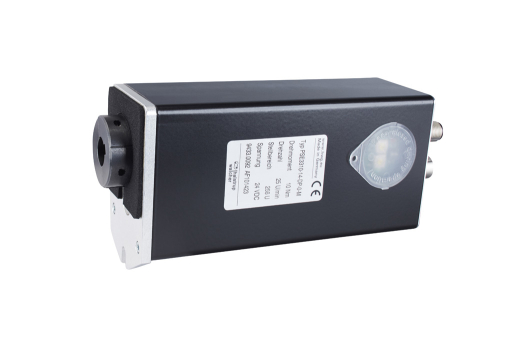

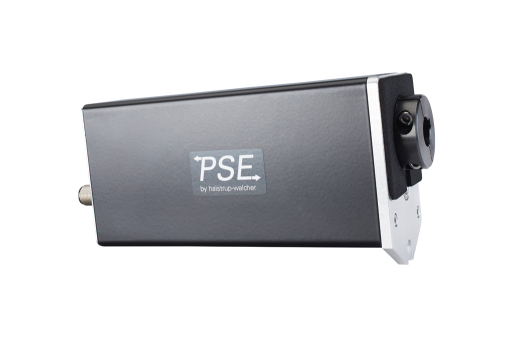

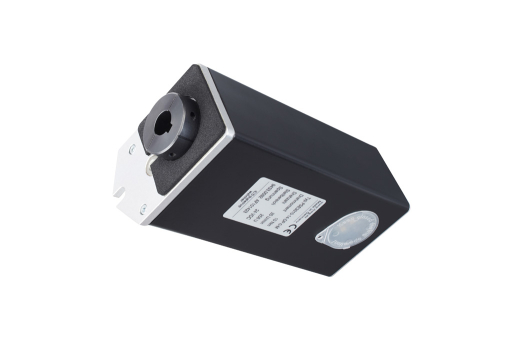

PSE 33x-14

Positioning system with 35 W power output and IP 54

Overview
Technical data
Documents and downloads
Images

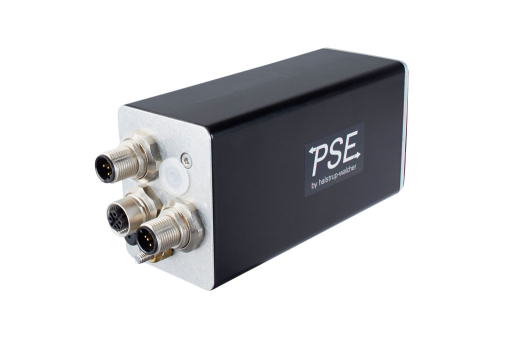

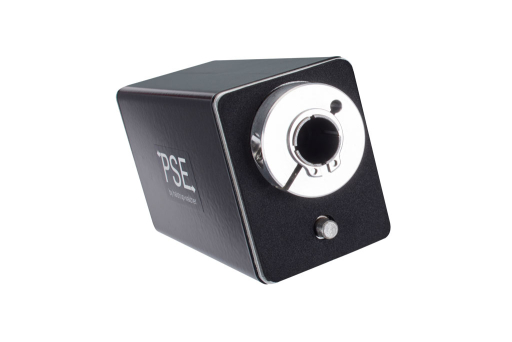

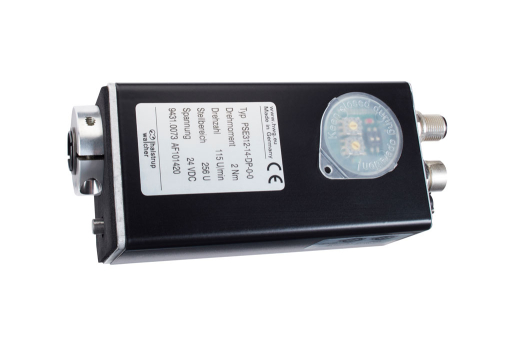

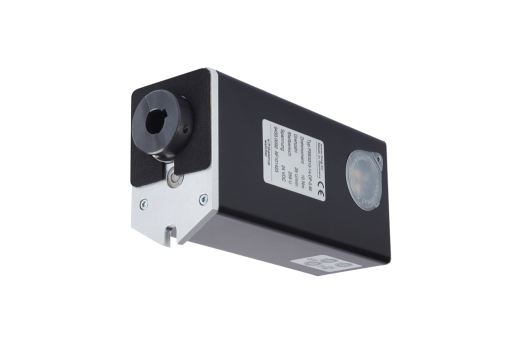

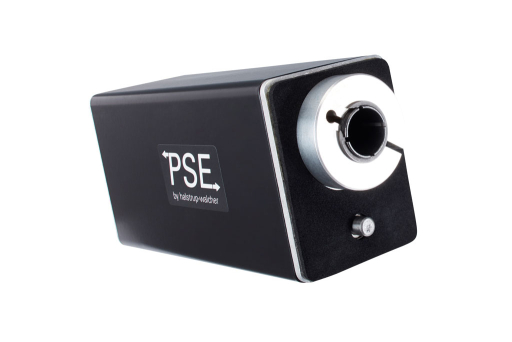

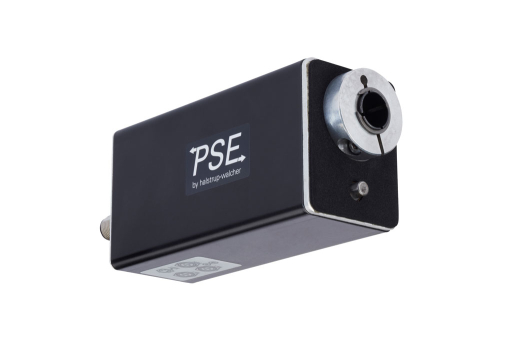

Positioning system with 35 W power output and IP 54

Special features

  • Space-saving, compact design
  • Galvanically separated supply voltages for control and performance electronics
  • Durable EC-motor
  • Extremely accurate positioning due to measurement of the position at the output side
  • Easy and low-cost mounting via hollow shaft
  • Bus interfaces simplify start-up and wiring complexity
  • Address may be set using the bus or an address switch (not for IO-Link)
  • Baud rate set via switch
  • Status messages retrievable via bus

The positioning systems PSE 33x-14 are intelligent, compact drives for the automatic adjustment of auxiliary and positioning axes comprising an EC motor, gear, controller, measuring system and several bus interface. The integrated electronic control feature frees up the machine´s central control unit. No external motors, proximity or limit switches are required. The absolute measuring system at 250 rotations eliminates the need for time-consuming reference runs and increases the efficiency of the machine. Direct measurement of the position at the output shaft of the positioning system ensures highly accurate positioning. The galvanically separated supply voltages for the control and performance electronics permit the implementation of an emergency shut-off function without interrupting communication with the control module. Address and baud rate switches simplify start-up, even without the knowledge of the control software (not for IO-Link). The drive can be mounted on a spindle using the hollow shaft without the need for an additional coupling. Two bus connections are available for looping the bus signal (not for IO-Link).

Options

  • Set-up mode or manual positioning permits the connection of jog keys (optional, not for IO-Link).
  • A holding brake (optional) holds the position even with no supply voltage.
  • NRTL certification optional (standard CE)
Position

Longitudinal construction

Nominal torque / nominal rated speed
2 Nm / 150 rpm5 Nm / 68 rpm10 Nm / 25 rpm25 Nm / 10 rpm
Interface / bus communication
CANopenPROFIBUS DPDeviceNetModbus RTUSercosEtherCATPROFINETEtherNet/IPPOWERLINKIO-Link
Positioning accuracy
0.9° (position taken directly at the output shaft)
Supply voltage

24 VDC

Output shaft
14 mm hollow shaft with adjustable collar
Positioning range
250 rotations, not subject to mechanical limits
Protection class

IP 54
