PSE 31x-8

Positioning system with the smallest dimensions in this series

Overview
Technical data
Documents and downloads
Images

Positioning system with the smallest dimensions in this series

Special features

  • Space-saving, compact design
  • Galvanically separated supply voltages for control and performance electronics
  • Durable EC-motor
  • Extremely accurate positioning due to measurement of the position at the output side
  • Easy and low-cost mounting via hollow shaft
  • Bus interfaces simplify start-up and wiring complexity
  • Address may be set using the bus or an address switch (not for IO-Link)
  • Baud rate set via switch
  • Status messages retrievable via bus

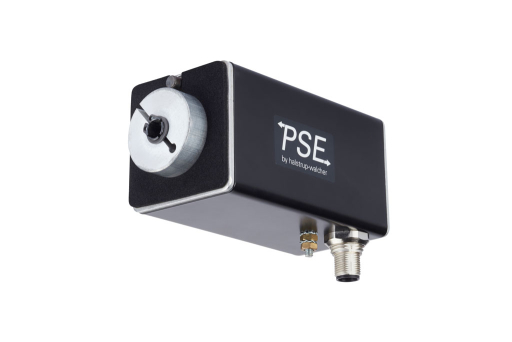

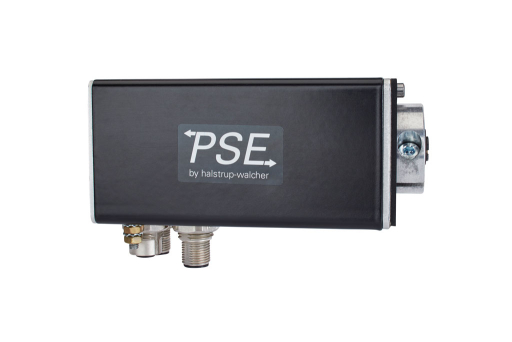

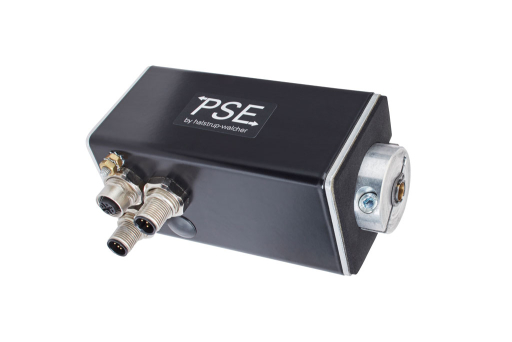

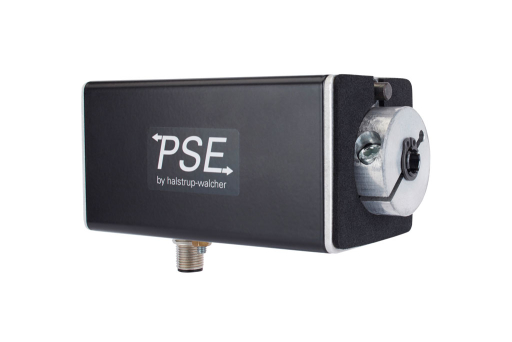

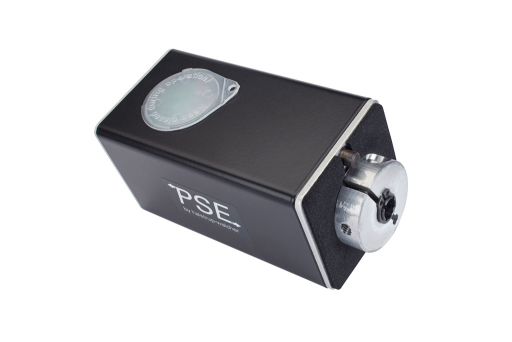

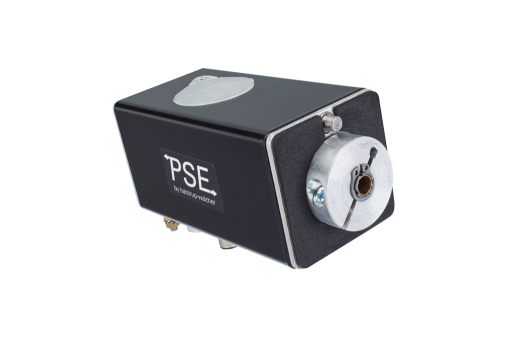

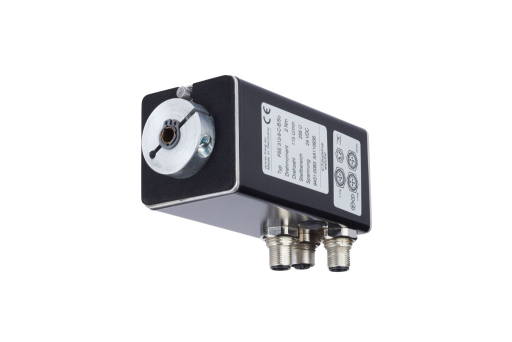

The positioning system PSE 31_-8 is an intelligent, compact solution for the automatic adjustment of auxiliary and positioning axes comprising an EC-motor, gear, controller, measuring system and CANopen, PROFIBUS DP or Ethernet-bus interface. The integrated electronic control feature frees up the machine´s central control unit. No external motors, proximity or limit switches are required. The absolute measuring system at 250 rotations eliminates the need for time-consuming reference runs and increases the efficiency of the machine. Direct measurement of the position at the output shaft ensures highly accurate positioning. The galvanically separated supply voltages for the control and performance electronics permit the implementation of an emergency shut-off function without interrupting communication with the control module.
Address and baud rate switches simplify start-up, even without the knowledge of the control software (not for IO-Link). The instruments can be mounted on a spindle using the hollow shaft without the need for an additional coupling. Two bus connections are available for looping the bus signal (not for IO-Link).

Set-up mode or manual positioning permits the connection of jog keys (optional, not for IO-Link).

Options

  • Two bus connections are available for looping the bus signal.Adress switches always provided (also IE-buses, not for IO-Link).Set-up mode or manual positioning permits the connection of jog keys (optional, not for IO-Link).NRTL certification in accordance with UL, CSA, ANSI and CE optional (standard CE)
Position

Longitudinal construction

Nominal torque / nominal rated speed
1 Nm / 210 rpmPSD 422: 2 Nm / 200 rpm5 Nm / 40 rpm
Interface / bus communication
CANopenPROFIBUS DPDeviceNetModbus RTUSercosEtherCATPROFINETEtherNet/IPPOWERLINKIO-Link
Positioning accuracy
0.9° (position taken directly at the output shaft)
Supply voltage

24 VDC

Output shaft
8 mm hollow shaft with adjustable collar
Positioning range
250 rotations, not subject to mechanical limits
Protection class

IP 54
