Integrated positioning system for automatic format changeover in machines
Positioning system for automatic format changeover
Special features

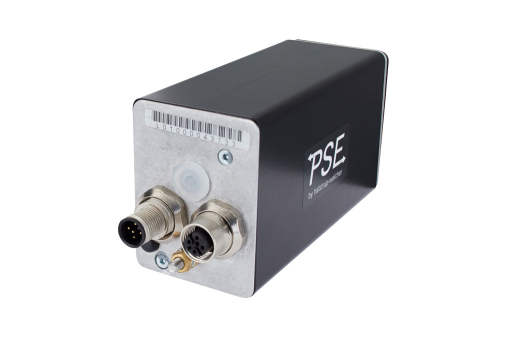

The positioning systems PSE 31x-14 are intelligent, compact solutions for the automatic adjustment of auxiliary and positioning axes comprising an EC-motor, gear, controller, measuring system and up to 9 bus interfaces or IO-Link. The integrated electronic control feature frees up the machine´s central control unit. No external motors, proximity or limit switches are required.
The absolute measuring system at 250 rotations eliminates the need for time-consuming reference runs and increases the efficiency of the machine. Direct measurement of the position at the output shaft ensures highly accurate positioning. The galvanically separated supply voltages for the control and performance electronics permit the implementation of an emergency shut-off function without interrupting communication with the control module.
Address and baud rate switches simplify start-up, even without the knowledge of the control software (not for IO-Link). The drives can be mounted on a spindle using the hollow shaft without the need for an additional coupling. Two bus connections are always provided for looping the bus signal (not for IO-Link).
Options
Longitudinal construction
CANopen, PROFIBUS DP, DeviceNet, Modbus RTU, Sercos, EtherCAT, PROFINET, EtherNet/IP, POWERLINK, IO-Link
IP 54, IP 65
